Product Details
Place of Origin: CHINA
Brand Name: OEM
Certification: CE
Model Number: YLR2-5-X(106L-BS)
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton 224pcs/462pcs loaded in 20'GP/40GP
Delivery Time: 25~30days
Payment Terms: T/T, L/C
Supply Ability: 100000pcs/Year
Product Name: |
Bottled Water Dispenser |
Type: |
Hot And Cold |
Installation: |
Free Standing Water Dispenser |
Cabinet: |
With 16L Refrigerator/fridge |
Voltage: |
220V/50Hz Or Customized |
Lock: |
Auto-stop With Child Safety Lock |
Use: |
For 3 Or 5 Gallon Water Bottles |
Function: |
Heating And Cooling Water |
Application: |
Home/office/school |
Product Name: |
Bottled Water Dispenser |
Type: |
Hot And Cold |
Installation: |
Free Standing Water Dispenser |
Cabinet: |
With 16L Refrigerator/fridge |
Voltage: |
220V/50Hz Or Customized |
Lock: |
Auto-stop With Child Safety Lock |
Use: |
For 3 Or 5 Gallon Water Bottles |
Function: |
Heating And Cooling Water |
Application: |
Home/office/school |
Home 5 Gallon Bottled Water Dispenser Auto Stop Timer Free Standing
* Features:
1) Automatic Induction Water Cooler Dispenser
2) Touchless type water dispenser
3) Instant cup sensing
4) Water outlet controlled by solenoid valve
5) 15 Seconds Auto-stop Timer
6) With Automatic Control by hand for Child safety lock on hot water
7) Bottled or Pipeline model is available
8) Hot & cold water dispensersing for your convenience
9) With differnt color options
* Technical Specification:
| Model No. | YLR2-5-X(106L-BS) | |
|
Product Description |
|
|
| Measure | Unit Dimension | 31 *32* 96cm |
| Compact Carton Packing | 33 *36* 100cm | |
| Weight | Net weight | 14.5 kg |
| Gross weight | 15.5 kg | |
| Power | Electricity Supply | 220V/50Hz or customized |
| Wire Plug | VDE/USA plug or customized | |
|
Heating |
Heater | External heating resistance |
| Temp Control | Bimetal thermometer | |
| Volume of hot water tank | 1.1Litre, Stainless steel 304 Welded hot tank/customized | |
| Heating Power | 500W | |
| Output temperature & Capacity | 85℃～95℃ 5Litres/Hour | |
|
Cooling |
Refrigerant | R134a (Freon-free, environmental friendly) |
| Volume of cold tank/reservior | 3.5Litre,Stainless steel 304, cold water tank | |
| Cooling Power | 130W | |
| Capacity | 5℃～10℃ 2Liters/Hour | |
| Color | Standard Color | White + Black Painting |
| Other | Complete Grey/Black or Red+ Black painting or customized | |
| Loading Quantity | 1*20'GP | 224pcs |
| 1*40'GP/40'HQ | 462/462pcs | |
maintenance
1,Do not put metal rods into the ventilation window of the back panel, so as not to damage the fan or cause electric shock; do not cover the ventilation window of the fan, so as not to damage the semiconductor refrigeration components due to poor ventilation and poor heat dissipation, resulting in bad conditions.,
2,For a water dispenser that uses a compressor for refrigeration, when the refrigeration power supply is disconnected, it must be restarted after 3-5 minutes to prolong the life of the machine.
3, When pressing the faucet to receive water, do not use too much force, so as to prevent the turning part of the hand from coming out or being damaged.

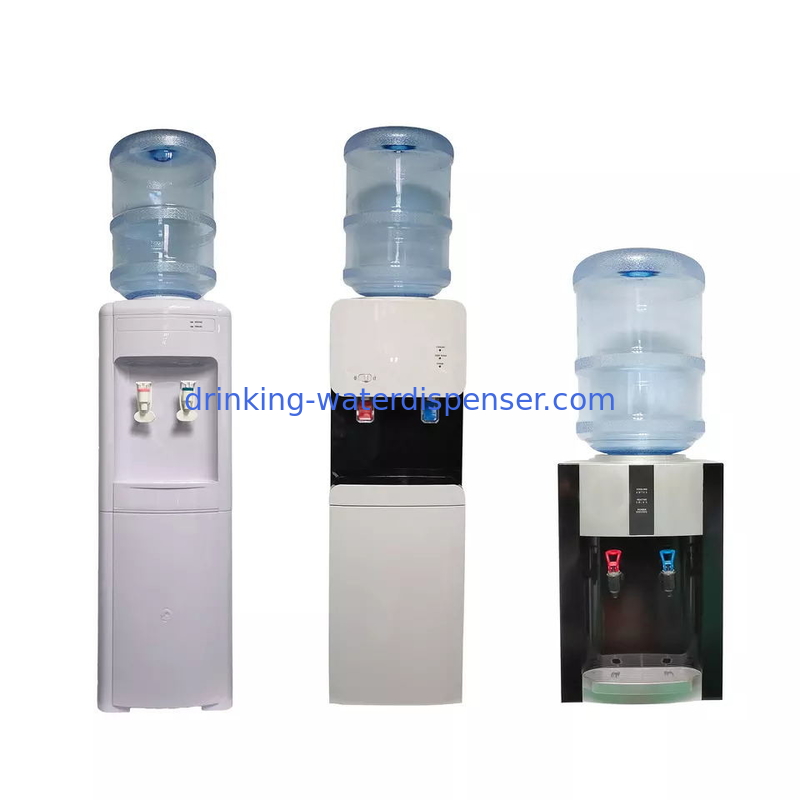

Image reference:
Different color painting available
